20190725 Ublox Z9P PPS and RTCMv3 corrections

For unrelated experiments, I have “borrowed a cup of RTCMv3” corrections from GPSnet.dk - one of the “real” RTK networks in Denmark.

On time-nuts the consensus is that RTK corrections should not matter for a position-locked receivers PPS output, and since I had the chance I decided to sanity check this consensus.

The setup is as follows:

RTCMv3 corrections from GPSnet.dk to:

UBlox Z9P receiver, (Note: ‘P’, not ‘T’) GPS+GLONASS L1+L2

PPS output feeds START input on:

HP5370C (ie: a B with JKS’ improved CPU board)

HP5065A feeds STOP input with 5MHz.

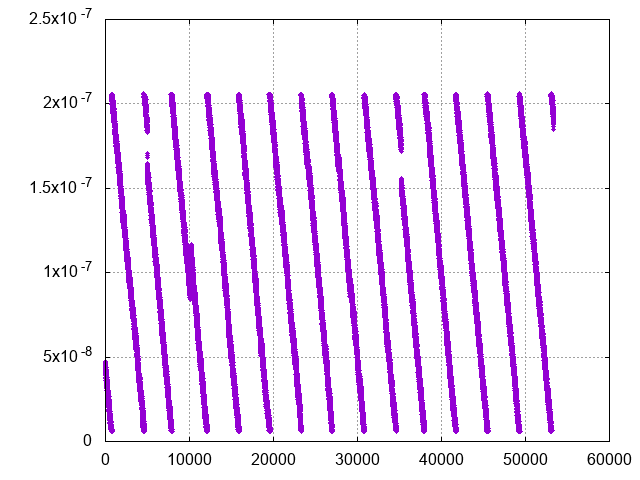

The raw data looks like this:

../../_images/20190725_fig1.png

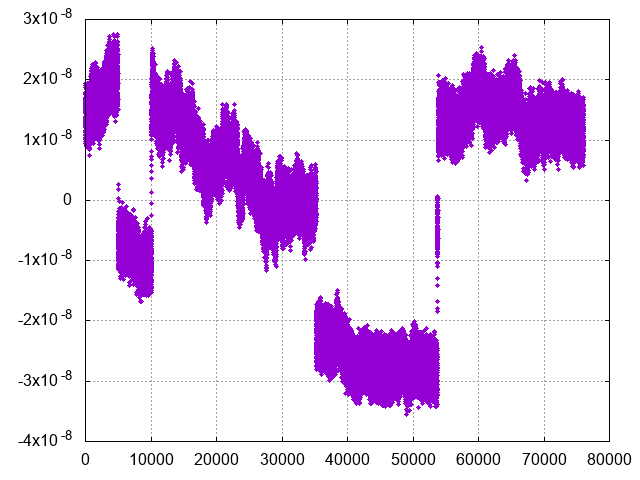

After unfolding the 5MHz period and removing the HP5065’s frequency offset (-5.3e-11) it looks like this:

../../_images/20190725_fig2.png

The RTCMv3 corrections were on from 5000 to 10000 and again from 35000 seconds onward.

I have asked UBlox support if the 20 ns shift is intentional or a bug. Will update here if I get a reply.

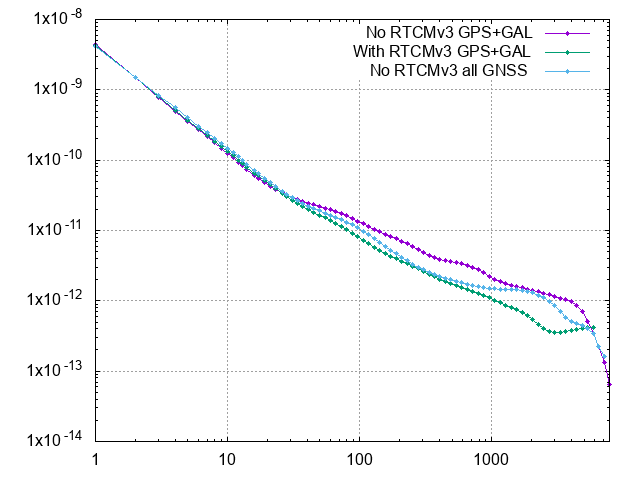

The Modified Allan Deviation indicates a small but not uninteresting improvement:

../../_images/20190725_fig3.png
